GENERAL DESCRIPTION:Larsen's Architectural Series is a traditional, value-added line of recessed, semi-recessed, and surface mounted fire extinguisher cabinets. These units are designed for all types of buildings and are equipped with the conventional door styles such as those pictured below. The standard door and trim material is steel, and optional materials include both aluminum and stainless steel. All doors are 1/2 inch thick and open 180 degrees. All doors have a satin finish pull handle with a self-adjusting roller catch; and a continuous piano hinge constructed of material which matches the door and trim.
BOX SPECIFICATION:All recessed and semi-recessed cabinets and surface-mounted steel cabinets have a heavy gauge, white baked enamel box. Surface-mounted cabinets with aluminum door and trim have a box constructed entirely of clear or color anodized aluminum. Surface-mounted cabinets with stainless steel door and trim have a box constructed entirely of 304 stainless steel with #4 finish.
TRIM AND DOOR SPECIFICATION:Steel trims and doors are one piece, constructed of cold-rolled steel with a standard finish of white baked acrylic enamel, which can be used as either a finish or prime coat. Aluminum trims are constructed of extruded or fabricated aluminum and all corners are mitered. Aluminum is the recommended material for applications in salt air and other corrosion prone environments.

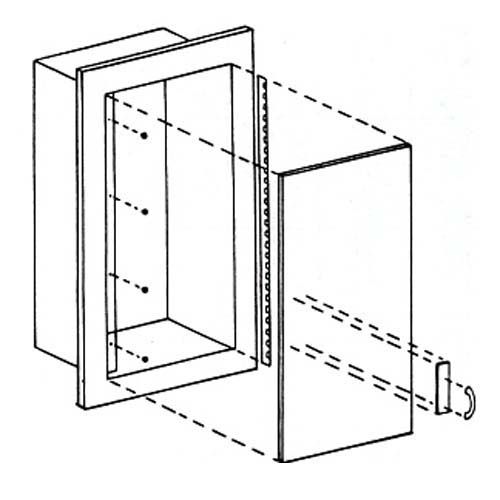

Clear satin anodized finish is standard for all trims and doors, and a wide selection of optional color anodized finishes is available. To specify aluminum trim and door, use the prefix AL before the cabinet model number. Stainless steel trims and doors are one piece, constructed of #4 finish, 304 stainless steel. To specify stainless steel trim and door, use the prefix SS before the cabinet model number. All steel and stainless steel doors have a tubular, hollow-metal design. A sample of door and trim materials is pictured.
